Entrance doors insulated system COMFORT M20000

Description

COMFORT Μ20000 is a thermal insulated entrance door system for robust constructions with satisfying thermal insulation and high security level.

Advantages

Certificates

  • Very good value for money
  • Good energy efficiency
  • Good security level
  • Good sound insulation
  • Variety of profile design
  • High functionality

Generic

THERMAL INSULATION
Po
EXTERIOR SHAPE
Classic, Curved, Flat

Technical Characteristics

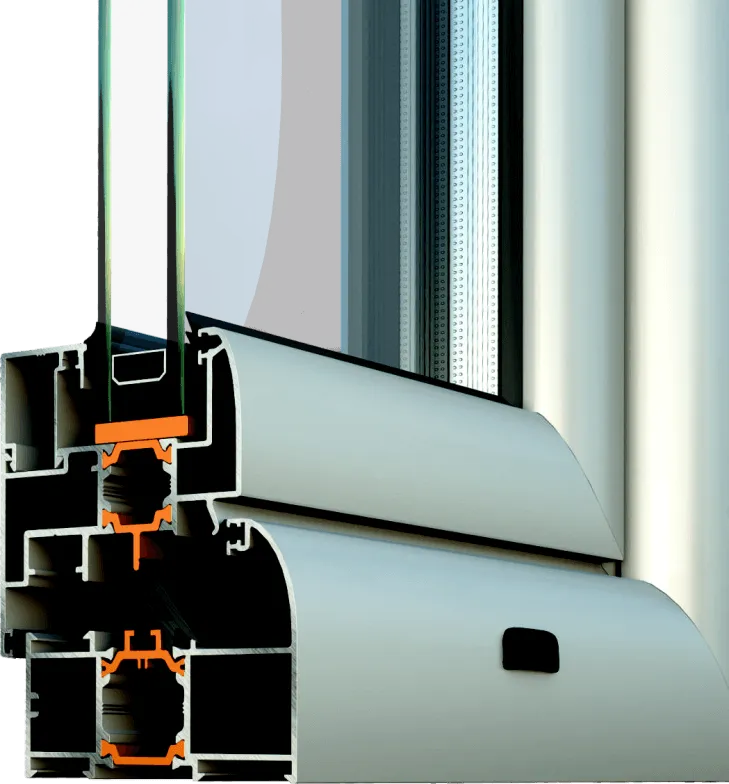

FRAME DEPTH
62,5 mm
GLAZING TYPE
Single – Double – Triple
MAXIMUM GLAZING THICKNESS
From 24 mm up to 40 mm
MECHANISM
Perimetrical locking mechanism
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
MINIMUM THRESHOLD HEIGHT
17,5 mm
TYPE OF THERMAL INSULATION
Polyamides 20 & 24 mm width

Performance

AIR PERMEABILITY
CLASS 4

Characteristics

MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
114,5 mm
SASH WEIGHT
up to 180 Kg
TYPES OF TYPOLOGY
For all entrance door typologies

TYPOLOGIES

All available typologies

Hinged door inwards/outwards

Double leaf door inwards/outwards opening

Hinged door inwards/outwards with insulation panel & fixed pane

Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
