Entrance doors non insulated system SMARTIA M15000 BR

Description

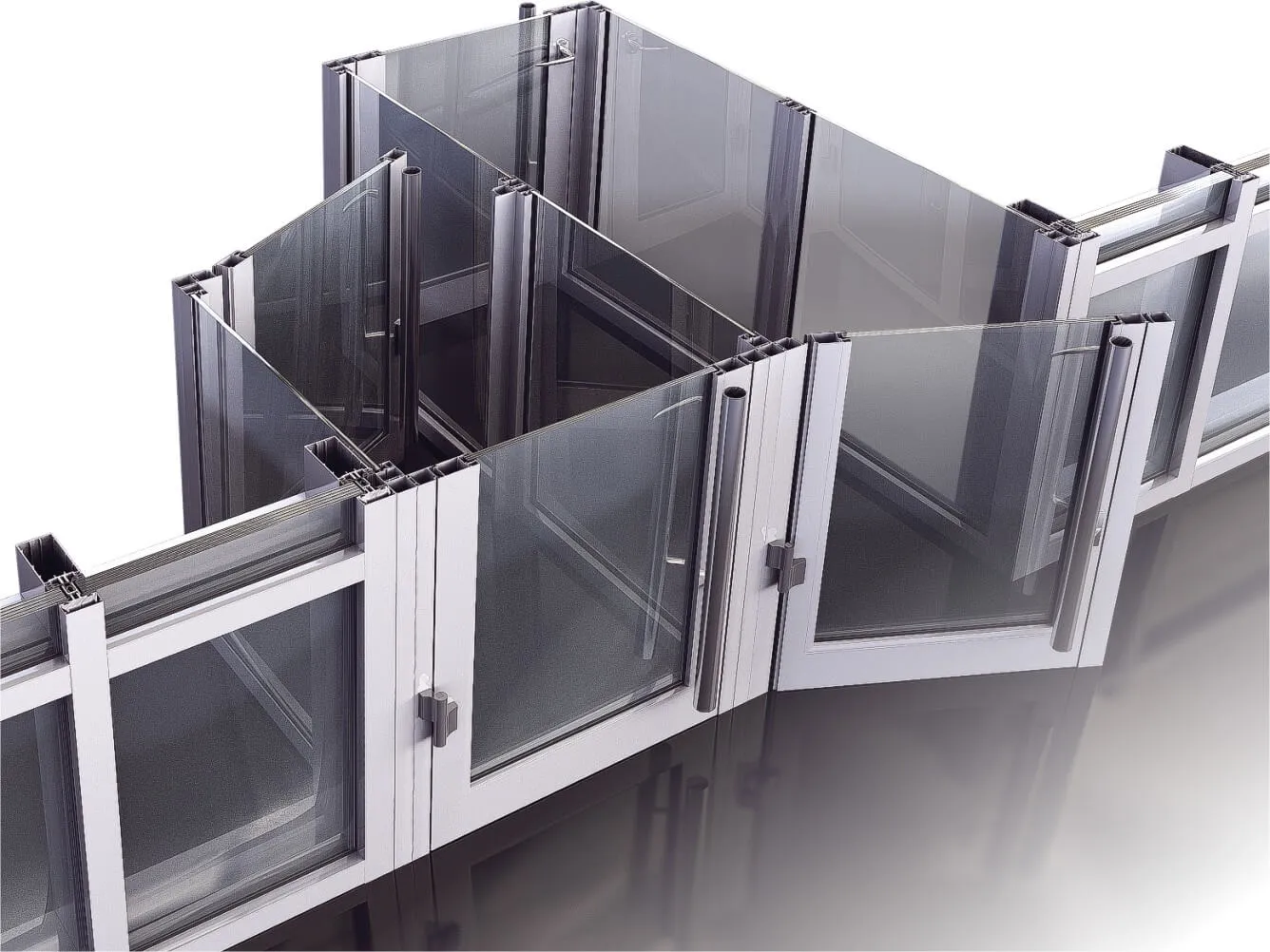

SMARTIA M15000 BR is a burglar resistant hinged system ideal for the creation of high safety entrance doors and safety cages.

Advantages

Certificates

  • Very good value for money
  • Increased level of security
  • Modern design
  • Ease of use and high functionality
  • High quality with certified performances

Generic

THERMAL INSULATION
No
EXTERIOR SHAPE
Flat

Technical Characteristics

FRAME DEPTH
50 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
39 mm
GLAZING TYPE
Single – Double
MAXIMUM GLAZING THICKNESS
5mm deri në 40 mm
MECHANISM
Door locking mechanism
SEALING METHOD
2 levels of watertightness with EPDM gaskets
MINIMUM THRESHOLD HEIGHT
18,5 mm

Performance

BURGLAR RESISTANCE
RC2

Characteristics

UF
from 2,5 W/m²K
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
121,4 mm
SASH DEPTH
50 mm
SASH WEIGHT
up to 180 Kg
TYPES OF TYPOLOGY
For all entrance door typologies with glass or aluminium panels

TYPOLOGIES

All available typologies

Hinged door inwards/outwards

Double leaf door inwards/outwards opening

Hinged door inwards/outwards with insulation panel & fixed pane

Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
