Entrance doors insulated system SMARTIA SD77
Description
SMARTIA SD77 is ALUMIL’s system for quality entrance doors requiring modern design, high performance and emphasis on safety. The system provides the ability to create multiple constructions combined either with aluminium panels or with glazing infills. Thanks to its modern, flat and coplanar design, it offers elegant uniformity that enhances the innovative design and aesthetics of the series.
Advantages
Certificates
- High energy savings thanks to high energy efficiency
- High security level
- Modern design
- Ease of access, ideal for people with special needs and children
- Exceptional sound insulation
- Ease of use and high functionality
- Wide variety of typologies and solutions
- Exceptional quality with certified performances
Generic
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat
Technical Characteristics
FRAME DEPTH
77 mm

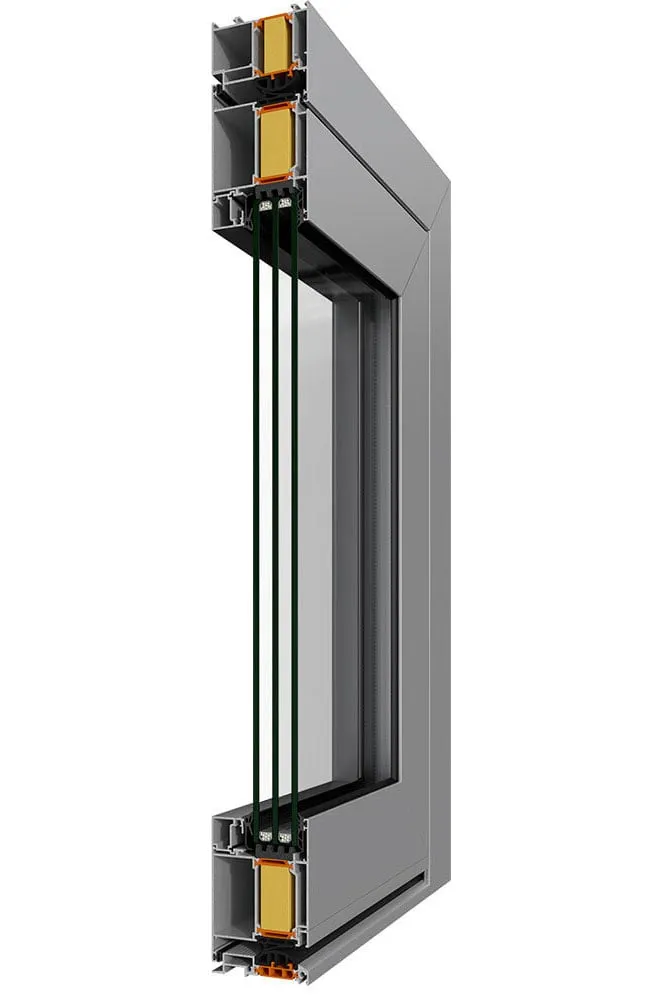

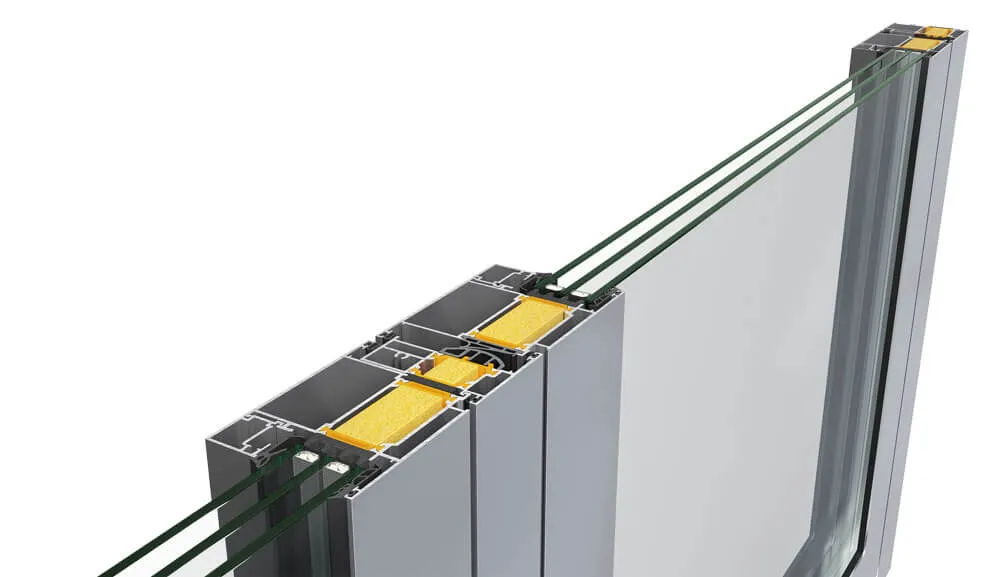

GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
23 up to 59 mm
MECHANISM
Perimetrical locking mechanism
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets

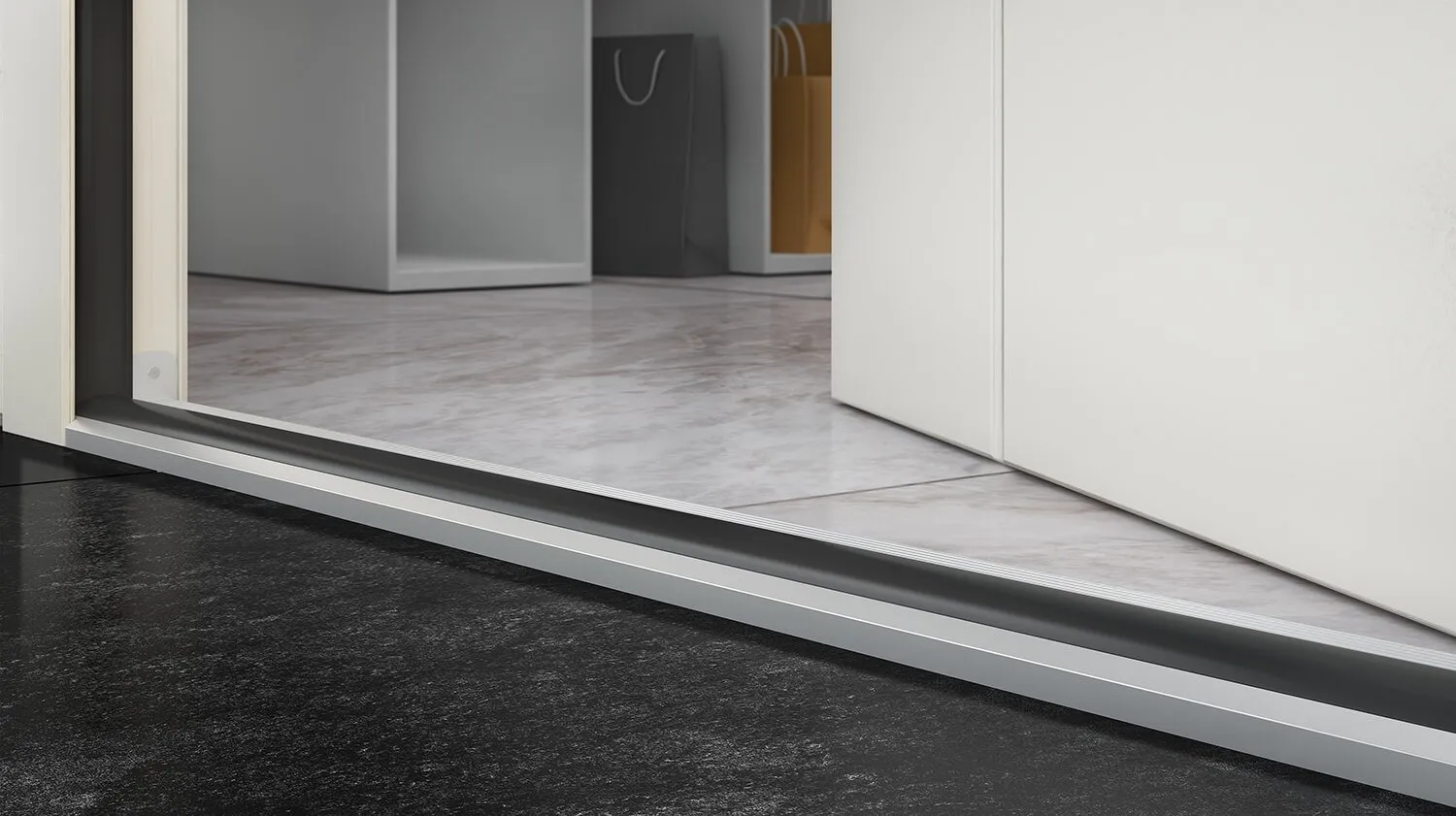

MINIMUM THRESHOLD HEIGHT
22 mm
TYPE OF THERMAL INSULATION
Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam
Performance
UE
from 0,7 W/m²K
WATER TIGHTNESS
CLASS 7A
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C4/B4
BURGLAR RESISTANCE
RC2
Characteristics
SASH WEIGHT
up to 180 Kg
UF
from 0,9 deri në 1.9 W/m²K
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
117 mm
TYPES OF TYPOLOGY
For all entrance door typologies with glass or aluminium panels
TYPOLOGIES
All available typologies
Hinged door inwards/outwards

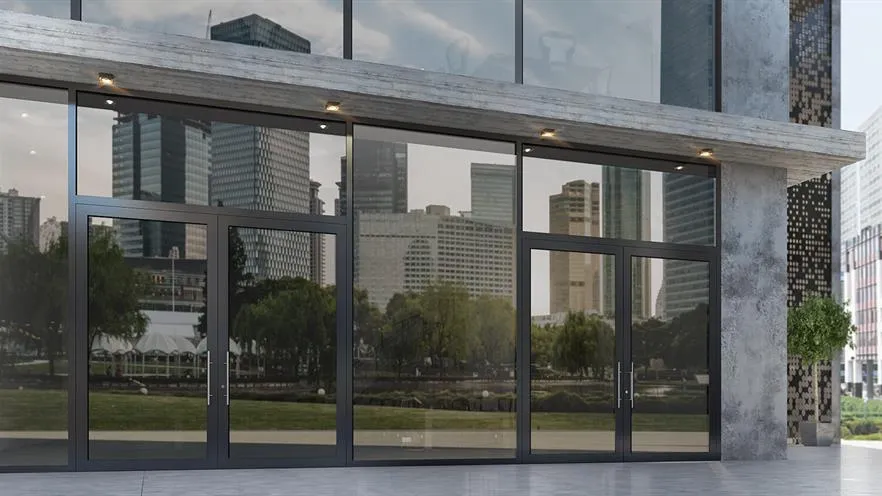

Double leaf door inwards/outwards opening

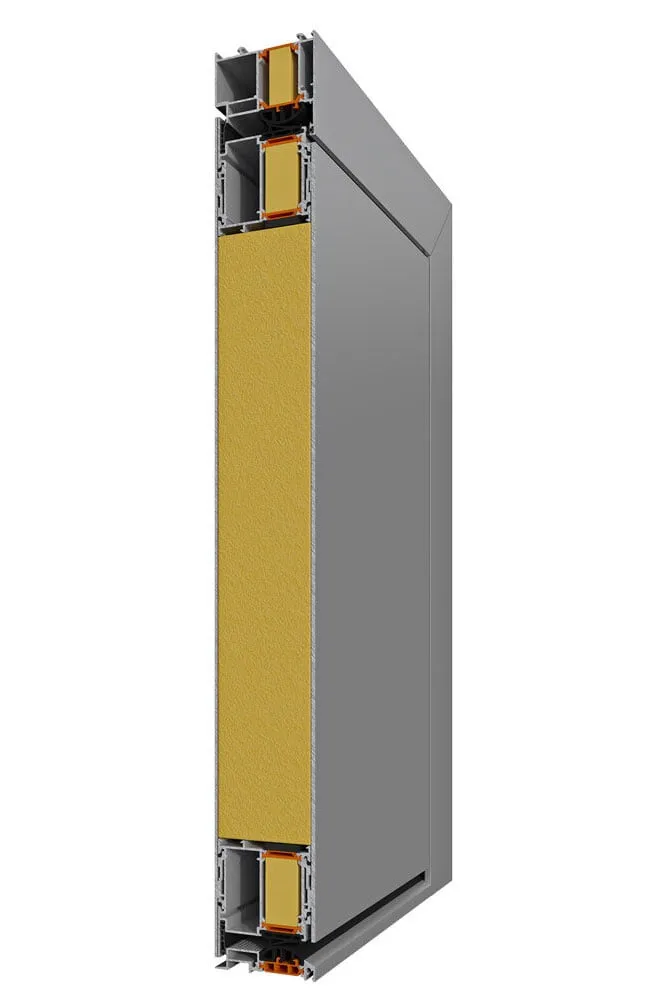

Hinged door with insulation panel
Double leaf door with insulation panel
Hinged door with insulation panel & fixed pane

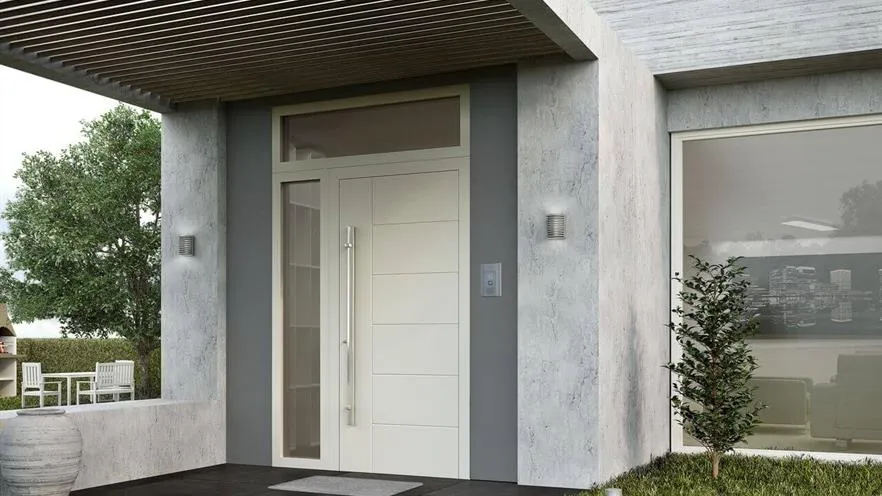

Hinged door with insulation panel, fixed pane & fanlight
Hinged door inwards/outwards with insulation panel & fixed pane
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
