SUPREME SF85 Insulated Folding Doors

Description

A world-class highly insulated folding door system with bottom-slide operation, which combines minimal aesthetics with outstanding performance, very large dimensions with literally low sight lines, enhanced burglar protection with a very large variety of solutions.

Advantages

Certificates

  • Very large dimension in terms of height (up to 4.0m), vent width (up to 1.5m)and total span width
  • Amazingly reduced sight lines which contributes to the overall minimal design
  • Extensive variety of solutions, with odd and even number of vents, corner construction, semi-structural vent version, inwards and outwards opening
  • Extreme performance in terms of air permeability, wind load resistance and water tightness
  • Significant energy and cost saving due to the excellent thermal insulation and U-values (as low as 1.0 W/m2K)
  • Enhanced levels of security and burglar protection, meeting all sector security standards
  • Smooth operation and long-lasting flawless functionality

Generic

OPERATION
bottom slide
THERMAL INSULATION
Yes
PANEL
aluminium framed panel, semi-structural panel
APPLICATIONS
residential with 1.5m panel width, commercial with 4.0m panel height, high-end projects

Technical Characteristics

SASH WIDTH

85mm

GLAZING

28-58mm

POLYAMIDE
Double 40mm
EXTRA INSULATING FITTINGS
Alumil energy bar insulation and PE insulation foam
MAIN GASKET
Single from co-extruded EPDM and foam
LOCKING
Quadruple locking latches
VISIBLE ALUMINIUM
105mm
MAXIMUM WEIGHT
200Kg/ vent
MAXIMUM HEIGHT
4,0 m
MAXIMUM PANEL WIDTH
1,5 m

Performance

WATER TIGHTNESS
7A/9Α (with subsill), IFT
AIR PERMEABILITY
class 4, IFT
WIND LOAD RESISTANCE
class C3/B3, IFT
BURGLAR RESISTANCE
RC2 IFT & PAS24 (UK)

Characteristics

THERMAL PERFORMANCE
1.1 W/m²K, IFT

TYPOLOGIES

All available typologies

Odd number of vents on one side

Odd number of vents plus door

Odd number of vents on both sides (meeting stile)

Odd number of vents on one side

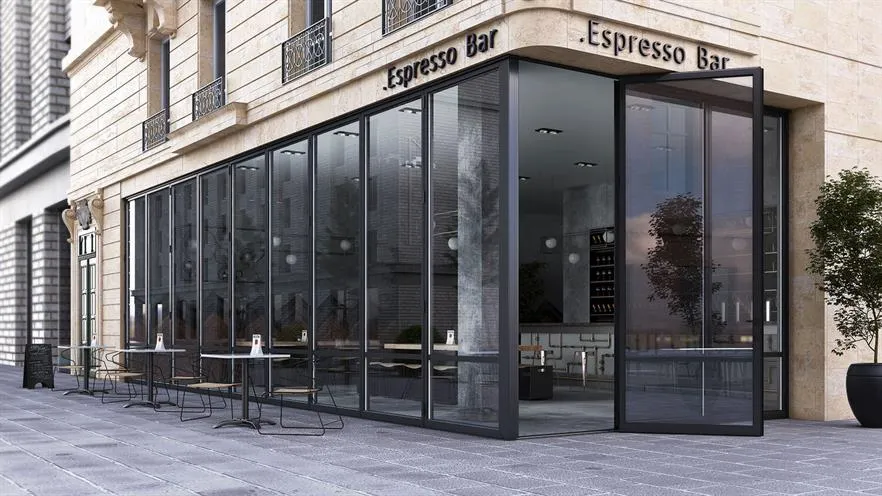

Corner construction with single door

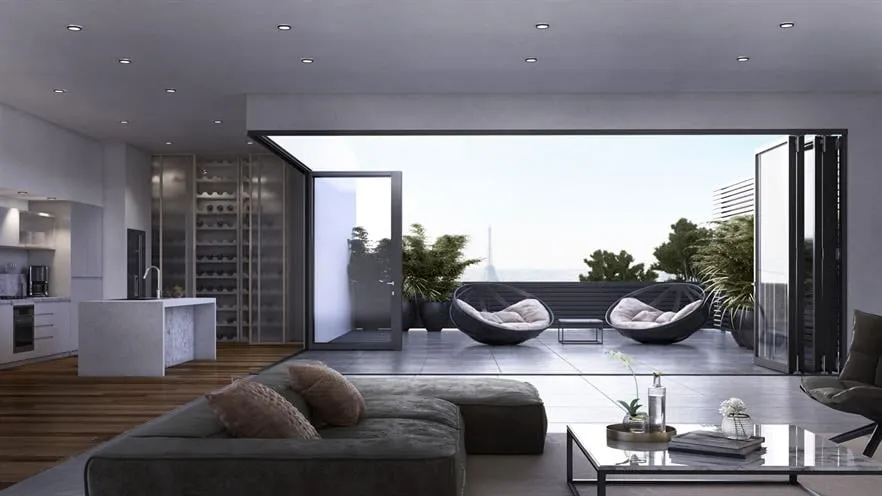

Corner construction with odd number of vents on both sides

Odd number of vents on both sides (meeting stile)

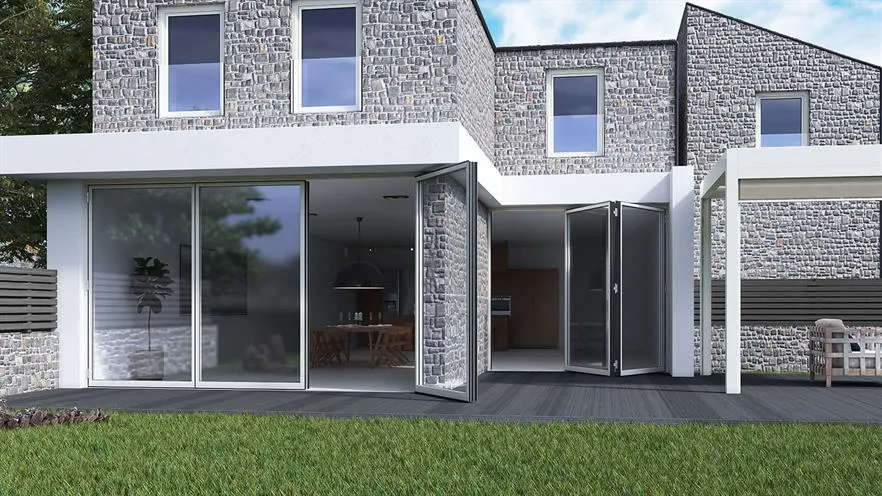

Even number of vents on one side

Even number of vents plus door

Even & odd number of vents on both sides (meeting stile)

Even number of vents on both sides (meeting stile)
